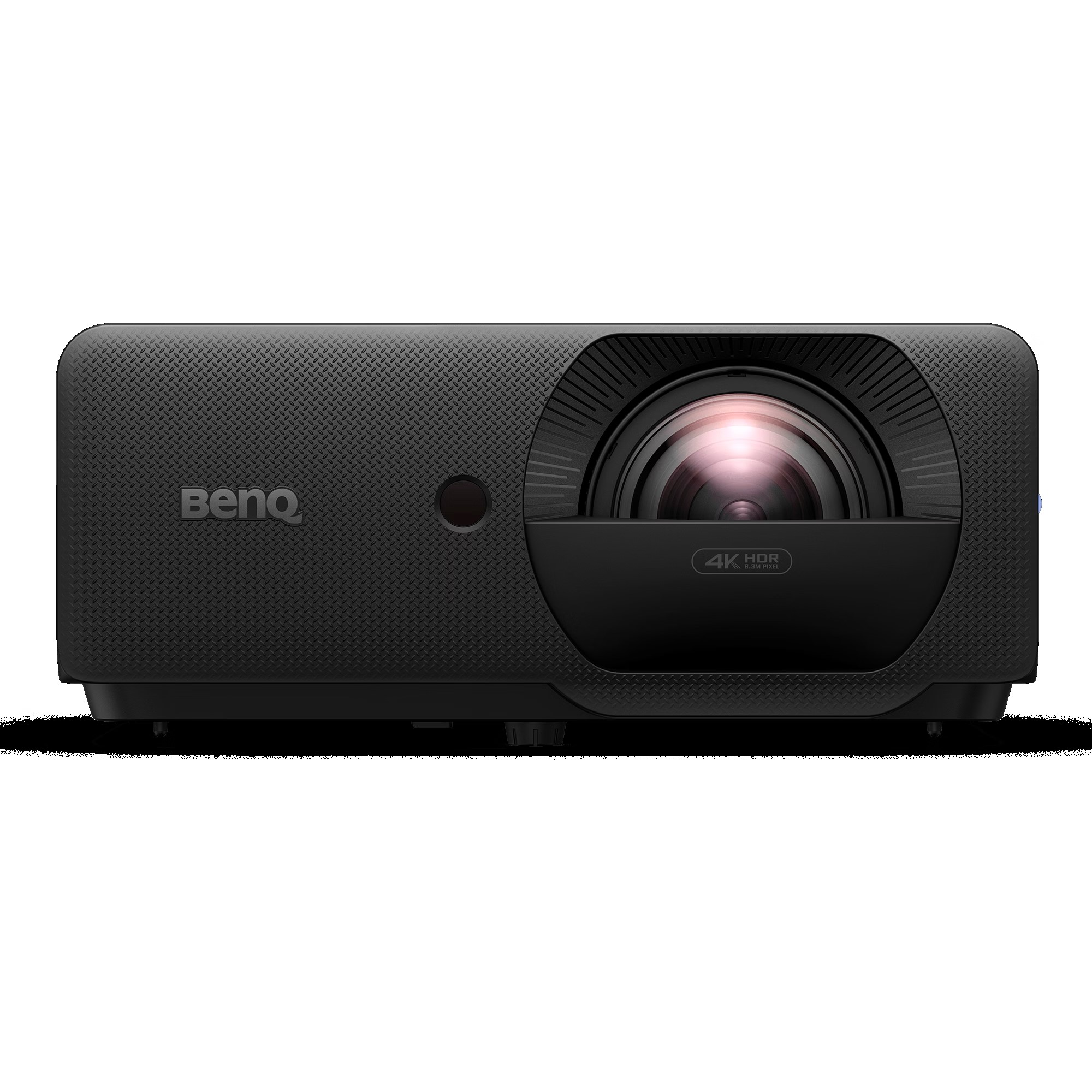

LK830ST — 4K Laser. 0.496 Throw. Built for Tight Spaces.
The only 4K projector at this throw ratio. Floor mounts, enclosure mounts, and short rooms — the LK830ST installs where other projectors can't.
Watch the LK830ST In Action
When BenQ sent me the LK830ST to test in my simulator studio, I wanted to know two things: does the 4K actually make a visible difference at typical simulator viewing distances, and does the 0.496 throw ratio really open up installs that would otherwise be impossible? After running it through my full testing process — floor mount, ceiling mount, and enclosure scenarios — I can give you a straight answer on both.
Why the 0.496 Throw Ratio Changes Everything
Most golfers focus on brightness and resolution first. Throw ratio is the spec that actually determines whether a projector will work in your room — and 0.496 is a genuinely short number that opens up install scenarios a standard or typical short-throw projector cannot.
At this ratio a 120" screen only needs 4.3 feet from lens to screen. A standard 1.3:1 throw projector needs over 9 feet for the same screen.
| Screen Size (Diagonal) | Image Width | Required Distance (LK830ST) | Notes |
|---|---|---|---|
| 100" 16:9 | 87" (7.3ft) | ~43" (3.6ft) | Floor or low ceiling mount works well |
| 110" 16:9 | 96" (8.0ft) | ~48" (4.0ft) | Very achievable in tight enclosures |
| 120" 16:9 | 105" (8.7ft) | ~52" (4.3ft) | Ideal sweet spot for most home sims |
| 130" 16:9 | 113" (9.4ft) | ~56" (4.7ft) | Plenty of room even in compact bays |
| 150" 16:9 | 131" (10.9ft) | ~65" (5.4ft) | Large commercial screens still covered |
Not sure which projector fits your room? Email Jay with your screen size and room depth — he'll tell you exactly what works and share his BenQ discount codes.
✉ Email Jay
The Big Offset — Why It Matters
Offset describes how far the image sits above the lens center line. The LK830ST's large upward offset means the projector can sit at floor level or at the base of an enclosure and still throw the image upward to fill the screen — perfectly, without tilting the unit or fighting keystone distortion.
A low-offset projector at floor level has to angle upward to hit the screen, which introduces trapezoid distortion and forces you to rely on digital keystone correction that softens the image. The LK830ST shoots nearly straight ahead from a low position and fills the screen cleanly top to bottom. This is the install scenario BenQ designed this projector specifically for.
Three Install Scenarios the LK830ST Nails
Floor / Ground Level
The LK830ST sits on the floor in front of or behind the hitting mat. The offset throws the image up to fill the screen with no tilt required. Clean, easy, no shadow issues. Perfect for portable or semi-permanent setups.
Enclosure Base Shelf
Many golf simulator enclosures have a shelf or recess at the base. The LK830ST mounts here cleanly, projecting upward through the hitting bay. No ceiling penetration, no cable runs up the wall.

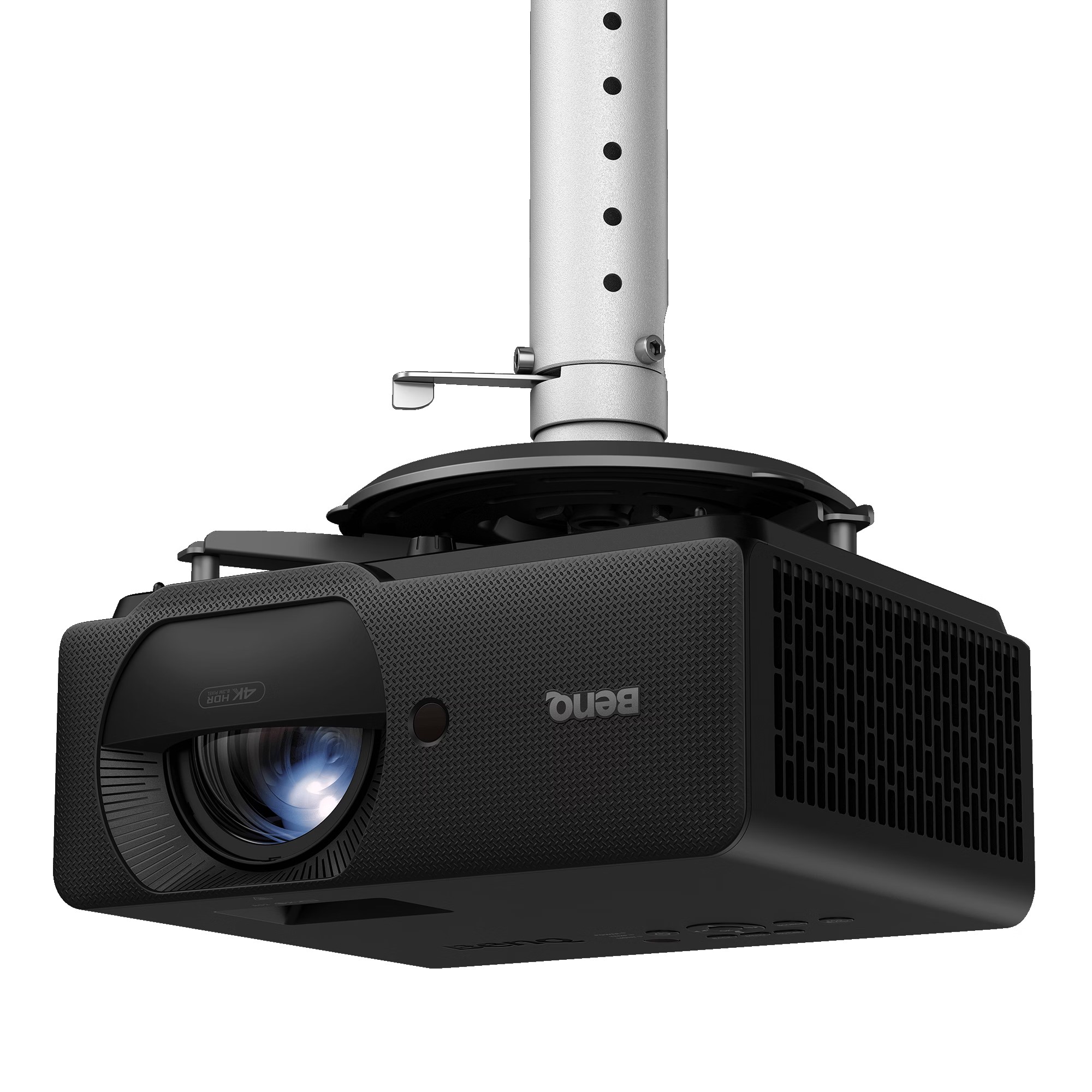

Ceiling / High Shelf
Traditional ceiling mount works too. At 0.496 throw the projector mounts much closer to the screen than standard projectors — no long boom arm required even in a room with limited ceiling depth.
LK830ST vs AH500ST — Is 4K Worth It?
The BenQ AH500ST is the natural comparison point — same 0.5 throw ratio, same 4,000 lumens, very similar install footprint. The two diverge on resolution and light source. On screens 120" and larger the 4K difference is clearly visible in course textures, yardage markers, and fairway detail. On screens under 110" at normal simulator viewing distances it is noticeable but less dramatic.
If you are already spending $3,000–$10,000 on a launch monitor and enclosure, stepping up to the LK830ST for a projector that will still look sharp in five years is money well spent. The AH500ST is excellent if budget is the constraint — but the LK830ST is the better long-term investment.
| Spec | BenQ LK830ST | BenQ AH500ST | Notes |
|---|---|---|---|
| Resolution | 4K UHD (3840×2160) | 1080p (1920×1080) | 4x the pixels on LK830ST |
| Brightness | 4,000 ANSI lumens | 4,000 ANSI lumens | Identical |
| Throw Ratio | 0.496 | 0.5 | Functionally identical |
| Light Source | Laser | LED | Laser = higher peak brightness |
| Light Source Life | 20,000 hrs | 20,000 hrs | Both excellent longevity |
| Corner Fit | ✓ | ✓ | Both included |
| Auto 2D Keystone | ✓ | ✓ | Both included |
| IP6X Dust Seal | ✓ | — | LK830ST advantage |
| Price (approx) | ~$2,499 | ~$1,499 | ~$1,000 premium for 4K + laser |
What Makes the LK830ST Different
Corner Fit
Adjusts each corner of the image independently. Essential for enclosure and floor mounts where the projector is never perfectly square to the screen.
Auto 2D Keystone
Automatically detects and corrects vertical and horizontal distortion at the push of a button. Non-technical installers can dial in a clean image in seconds.
Screen Fill
Supports 16:9, 4:3, 1:1, and 16:10 aspect ratios with auto-detection. Square impact screens are natively supported with no black bars or cropping.
Golf Simulation Mode
BenQ's color profile calibrated specifically for golf software. Greens read as greens, sky reads as sky. Makes a visible difference in course immersion.
IP6X Sealed Engine
Fully sealed against dust. In a garage or basement where sawdust and particles are common, this is a meaningful long-term reliability advantage. No filter to replace.
20,000 Hr Laser Life
At 4 hours per day, that is roughly 14 years of light source life. Lamp projectors need bulb replacements every few thousand hours. The LK830ST is genuinely set-it-and-forget-it.
Full Specifications
Every spec verified against BenQ's official documentation. The LK830ST is built around a sealed laser engine designed for permanent installations in demanding environments.
| Specification | BenQ LK830ST |
|---|---|
| Resolution | 4K UHD (3840 x 2160) |
| Brightness | 4,000 ANSI Lumens |
| Throw Ratio | 0.496 (fixed) |
| Light Source | Laser |
| Light Source Life | 20,000 hours |
| Aspect Ratio Support | 16:9, 4:3, 1:1, 16:10 |
| Color Standard | Rec. 709 |
| Keystone Correction | Auto 2D (Vertical + Horizontal) |
| Corner Correction | Yes — Corner Fit |
| Dust Protection | IP6X sealed engine |
| Operating Temperature | 32°F — 104°F |
| Wireless | Optional QP30 dongle (1080p 60Hz / 4K 30Hz) |
| Screen Size Range | ~70" — 300" |
| Installation Orientations | 360° including portrait |
| Multi-Projector Support | Yes — one-click blending preset |
| Firmware Updates | OTA (over-the-air) |
| Warranty | 3 years |
| Price (approx) | ~$2,499 |
How It Compares to Other Golf Simulator Projectors
The LK830ST is the only projector combining true 4K with a sub-0.5 throw ratio at this price point. The AK700ST and LK936ST both offer 4K but at longer throw ratios that require significantly more room depth.
| Projector | Resolution | Lumens | Throw Ratio | Price | Notes |
|---|---|---|---|---|---|
| BenQ LK830ST | 4K UHD | 4,000 | 0.496 | ~$2,499 | Only 4K at this throw ratio — IP6X, laser, big offset |
| BenQ AH500ST | 1080p | 4,000 | 0.5 | ~$1,499 | Same install flexibility, 1080p LED only |
| BenQ AK700ST | 4K UHD | 4,000 | ~0.69–0.83 | ~$2,899 | 4K but needs more room depth |
| BenQ LK936ST | 4K UHD | 5,100 | ~0.8 | ~$3,500+ | More lumens, longer throw, higher cost |
| BenQ TK710STi | 4K UHD | 3,000 | ~0.69 | ~$2,199 | Lower lumens, standard short throw |
| Optoma ZW350ST | WXGA 1280×800 | 4,000 | ~0.5 | ~$1,099 | Budget UST, lower resolution, no Golf Mode |
Comparing projectors for your build? Jay has tested every major model on this list in his own studio. Email him before you buy — free advice and exclusive discount codes available.
✉ Email JayPros and Cons
- True 4K UHD — sharpest image at this throw ratio
- 0.496 throw ratio — works in compact rooms
- Large offset enables floor and enclosure mounting
- IP6X dust-sealed engine — garage and basement friendly
- Corner Fit and Auto 2D Keystone simplify installation
- 20,000-hour laser — no bulb replacements ever
- Screen Fill supports 1:1, 4:3, 16:9, 16:10 screens
- 4,000 lumens handles ambient light well
- 3-year warranty
- ~$1,000 more than the 1080p AH500ST
- Fixed lens — no optical zoom
- Wireless requires optional QP30 dongle (extra cost)
- 4K benefit modest on screens under 110" diagonal
Ready to pull the trigger on the LK830ST? Email Jay first — he can confirm it's the right fit for your space and get you the best available price through his BenQ dealer connection.
✉ Email JayFrequently Asked Questions
What is the exact throw distance for the BenQ LK830ST?
The LK830ST has a fixed throw ratio of 0.496. Multiply the image width (not diagonal) by 0.496. For a 120-inch 16:9 screen the image is roughly 105 inches wide, requiring about 52 inches (4.3 feet) from lens to screen. For a 100-inch screen, approximately 43 inches (3.6 feet).
Can the BenQ LK830ST be floor mounted?
Yes — and this is one of its key advantages. The large projection offset means the image throws upward significantly from the lens position, so a floor-mounted projector fills the screen top to bottom without tilting or digital keystone correction. Ideal for enclosure base shelf mounts and floor installs.
Is the BenQ LK830ST an ultra short throw projector?
It sits right at the boundary of short throw and ultra short throw with its 0.496 ratio. At this distance it fills a 120-inch screen from just over 4 feet — behavior that is functionally ultra short for golf simulator use, where most competing 4K projectors require double that distance.
Is 4K worth the upgrade over 1080p for a golf simulator?
On screens 120 inches and larger, 4K delivers noticeably sharper images — fairway textures, yardage markers, and course detail all benefit. On screens under 110 inches at normal simulator viewing distances the difference is visible but less dramatic. If you use the space for home theater seating too, 4K earns its premium more quickly.
How does the LK830ST compare to the BenQ AH500ST?
Both share the same 0.5 throw ratio and 4,000 lumens. The LK830ST adds 4K UHD resolution, a laser light source, and IP6X dust sealing at roughly $1,000 more. For budget builds or screens under 110 inches the AH500ST is excellent. For larger screens or long-term premium installs, the LK830ST is the better investment.
What golf simulator software works with the LK830ST?
The LK830ST works with any simulator software your launch monitor and PC support. GSPro, E6 Connect, E6 APEX, Trackman Virtual Golf, FSX Play, Creative Golf, and Awesome Golf all display correctly through any projector. The LK830ST's Simulation mode color profile makes golf course environments look more natural regardless of software.
Does the LK830ST work with non-standard impact screens?
Yes. The Screen Fill feature supports 16:9, 4:3, 1:1, and 16:10 with automatic detection. Square impact screens (1:1) common in many enclosures are natively supported. Corner Fit and Auto 2D Keystone handle geometry for off-axis installs.
